1000W hybrid solar wind power generator

FOB Reference Price:Get Latest Price
US $790-1,300 / Sets | 5 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shandong, China (Mainland)
Brand Name:
Hengfeng
Model Number:
HF3.2-1KW
Type:
Wind Power Generator
Product Name:
1000W hybrid solar wind power generator
Generator type:
Permanent Magnent Generator
Power:
1KW
Blades diameter:
3.2m
Rated rotor speed:
400r/m
Rated wind speed:
8m/s
Max power:
1500W
Output voltage:
48V
Certificate:
ROHS, TUV, CE, ISO9001:2000
Supply for:
Small Referigerator, Washing Machine, Pump ect.
SupplyAbility
SupplyAbility:
900 Set/Sets per Month
Packaging & Delivery
Packaging Details
plywood case
Port
Qingdao
Lead Time :
Within 7 days



Hengfeng wind power generator manufacture--1000W hybrid solar wind power generator



Product description

HF3.2-1KW Description:







Model HF3.2-1KW
Power 1KW

Blades of diameter

 3.2m
Rated rotor speed 400r/m
Rated speed 8m/s
Rated power 1KW
Max power 1500W
Output voltage 48V
Start up wind speed 3m/s
Work speed 3-25m/s
Security wind speed 40m/s
Height of tower 6m
Top weight except tower 95KGS
Tower type∅76mm steel tube
Output controller system Controller, Inverter
Suggested batteries and its capacity 12V 100AH 4PCS
Can supply power for Small Referigetator,  Washing Machine, Water Pump, TV,  Lighting, Electric fan, Charge.ect



1KW

1kw spare parts





Company Information



       Qingdao Hengfeng Wind Power Generator Co., Ltd is the leading wind turbine manufacturer in china. Our company is the vanguard in wind energy industry in North China. We design, manufacture, install and service wind turbine across the globe, with more than 20000 sets wind turbine in 43 countries.



      Our main products are from 150W-500KW, have passed ROHS, TUV, CE, ISO9001:2000, IEC61400-1 ect. certifications, and with the highest quality and best service, we have built up a very good global reputation. Our products are widely applied for island, military, maritime monitor, home use, commercial business and remote area ect.



      Choose Hengfeng, choose the best wind generator of china!







Hengfeng wind power generator COMPANY :

_01





Hengfeng wind power generator WORKSHOP:

work shop

1000W hybrid solar wind power generator

Generator Advantage:



      1. Generator: suspension design for stator and case, effectively reduce the heat rate of the generator, and greatly increase generating capacity.



     2. Generator coils are with enameled wire which can resist 240 temperature, have higher safety and longer service life.



     3.The magnetic sheet is with high quality Neodymium iron boron and rare earth material, which is not easy to demagnetize, generated energy is larger and more stable. Gyrator is with Manual carbon brush ring and sealing treatment, it is fit to any bad weather, and with 360 free direction adjusting for the generator.



    4.The tail is with anti-skew protection, calculate from tail swept area, cut-in and cut-our wind speed, make out tail rod length and tail area ect. When the wind speed is high, anti-skew protection will be involved effectively, do really protect generator and blade ect.



    5. The paint is double component car paint, has the advantage of long anti-aging, not easy to rust and fadeless ect.



    6. Blades are with high grade anticorrosion, weather-resistant glass steel coating and high density fiber cloth, the effect of anti fatigue increase more than 50% than other kinds of blade. The blades are protected by the imported metal film coating, effectively prevent the dehiscence of the blades.

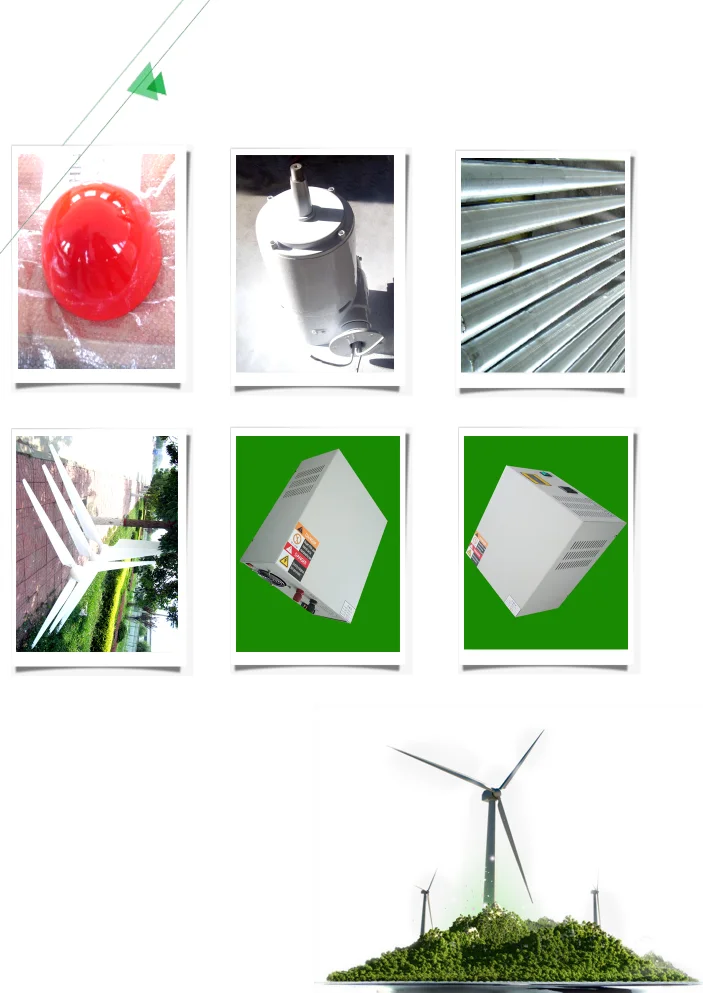

components quick description 1kw-2kw





Controller advantage



    1. If the system meet probles and the wind turbine is running,the manual brake button will prvent the wind turbine race rotation

    2. Our generators have the auto-protection function of the battery over voltage protection,battery under voltage protection,battery,reverse-connect protection solar panel reverse-charge protection,solar panel reverse-connect protection

    3. The wind turbine brake automatically when the battery bank voltage get to rated voltage 125% and stop charging batteries.when the charge current is high insrong wind turbine automatically and charging the battery with low current,however,the wind turbine get back charging the bayyeries when the battery bank voltage  get to rated voltage 108%

    4. The big power controller which are from 15kw to 100kw matches the touch-type screen and it is humanization design to make the operation more convenient and intuitive and intuitive to show more directly

    5. Controller with a manual emerhency brake switch,users can use depending on the circumstances.Using this switch,the wind turbine will be brake..

 1000W small wind generator

 32

Inverter advantage

    1. It is the pure sine wave output can drive any household appliances and use integrated circuit,less wire connection

    2. we adopt the micro-processor technology ,improving system integration

    3. Elcellent protection includes over voltage shutdown,under voltage shutdown,over load protection,short circuit protection,over thermal protection,etc.

    4. Be able to work in wind power or wind&solar hybrid system

    5. With high effciency transformer instead of high frequency e-circuit design

    6. Automatic regulate voltage

    7. LCD display operation status

    8. High running stability and reliability

    9. True sine wave form power output

   10. High efficient transformer isolation

   11.Buzzer alarm while over-loading/voltage,high-temperature



27

1000W hybrid solar wind power generator

Packaging & Shipping

We have large quantity to export every month for our wind power generators. Here are some packing pictures as following:



Package

10_



Loading_







Our Services



Our Offer Range:



    1. 150W-500KW Horizontal Axis Wind Turbine generator (HAWT)

    2. Vertical Axis Wind Turbine generator (VAWT)

    3. FRP wind turbine blades

    4. Permanent Magnent Generator

    5. Solar panel

    6. Solar and wind hybrid system

    7. Controllers, invertor, battery and relation products



    We design diffirent system for customers according to your request. For

example, on-grid or off-grid system, solar wind hybrid system or solar wind

diesel generator system ect.



  Hengfeng wind power generator OFF-GRID system:Drawing of horizontal off-grid system



Hengfeng wind power generator ON-GRID system:

horizontal on-grid



Hengfeng wind power generator SOLAR WIND HYBRID system:

wind solar







All our wind turbine generators have passed ROHS, TUV, CE, ISO9001:2000 ect. Certifications



certification
