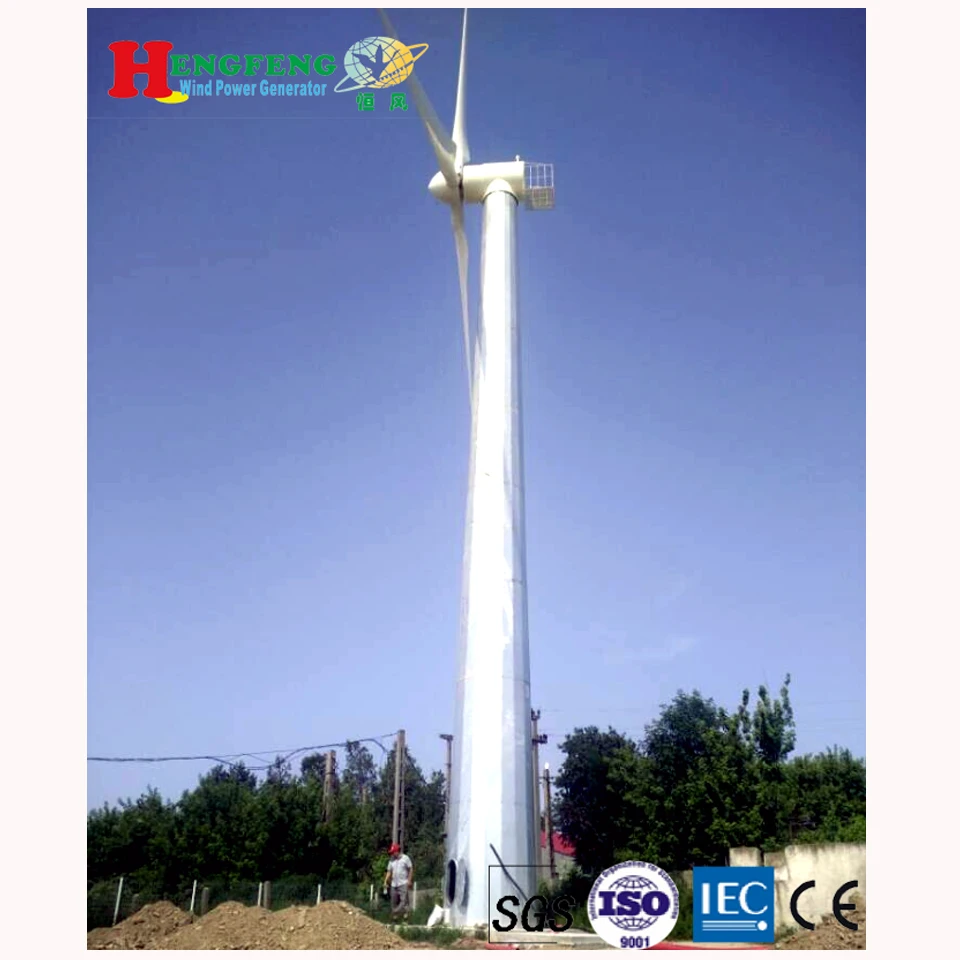

500KW generator wind

FOB Reference Price:Get Latest Price
US $640,000-790,000 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shandong, China (Mainland)
Brand Name:
Hengfeng
Model Number:
HF-500KW
Type:
Wind Power Generator
Product Name:
500KW generator wind
Generator type:
Permanent Magnent Generator
Power:
500KW
Blades diameter:
57m
Rated rotor speed:
27r/m
Rated wind speed:
14m/s
Rated power:
550KW
Max power:
480W
Certificate:
ROHS, TUV, CE, ISO9001:2000
Supply for:
Village, factory, air-condition, referigerator ect.
SupplyAbility
SupplyAbility:
30 Set/Sets per Month
Packaging & Delivery
Packaging Details
plywood case
Port
Qingdao
Lead Time :
Within 25 days



Hengfeng wind power generator manufacture--500KW generator wind



Product Description

HF57.0-500KW Description:



Model HF57.0-500KW
Power 500KW

Blades of diameter

 57m
Rated rotor speed 27r/m
Rated speed 14m/s
Rated power 500KW
Max power 550KW
Output voltage 480V
Start up wind speed 4m/s
Work speed 4 - 30m/s
Security wind speed 50m/s
Height of tower 36m(can design and made by request)
Tower type Free standing tower
Output controller system Off/on grid Controller and Inverter
Can supply power forVillage, factory, air-condition, refrigerator, washing machine, water pump,electric blow, color TV, lighter, fanner, charge.ect








 -2

 500KW generator wind



Generator Advantage



      1. Combining microcomputer with full hydraulic system, minimum rotor speed can reach to 60-20r, and it is also designed by wind field project. With slewing bearing and ultrasonic anemometer, the generator can have very good reliability.  With hydraulic yawing technology, it can stop at any position. Yaw precision is less than 0.5 degree, with higher-precision advantage. Hydraulic brake basing on disc brake mode, can control any rotor speed or stop ect.  With the most wind speed tracking function, wind generator can set up any most wind tracking in the full range of wind speed, guarantee the rotor speed in any case beyond the rated wind speed, and output the maximum power generation and not halt. It has realized to the maximum utilization of energy.

      2.  Direct drive permanent magnet generator: contains: Motor Stamping disk used is 470 silicon steel sheet, generator winding is pure copper wire which can be resistant to 160 degrees high temperature, high insulation properties, high permeability and high efficiency, high power generation efficiency, low-speed performance. In the light breeze wind speed the generator can generate electricity. Using advanced circuit automatic control system can automatically run reliably under adverse weather conditions, state-of-the-art technology, reliable unit performance, easy installation and maintenance. Controls, inverters, unloading blend.

         3. Wind turbine controllers are based on microcomputer control, PLC programmable logic control, man-machine interface, 256 color touch screen, operation more intuitive and convenient, rectifier components with temperature detection function, controller power acceptable input voltage range of 24-600V, in order to ensure the controller and the yaw motor can normal operation regardless of the circumstances, signal sensor is shielded cable connection, make sure signal transmission uninterrupted,  more reliable.

         4. Detection internal voltage and current sensor is use of the 12 high-precision, the controller controls the generator yaw according to wind speed, wind direction, current, voltage etc combined effects. yaw of the minimum angle is1 degree (Note: do not like other manufacturers yaw minimum angle is 30 degrees), so that we can make more effective use of wind energy to obtain the maximum output power.

           5. Blades: with fiberglass and unidirectional fiber cloth, and with manufacture of epoxy resin by hand mold and flange plate connection, connection is convenient, it needn’t correct when installing, and is with good balance.

          6. Tower: Inner flange connecting with poly prismatic hot-dip galvanizing, has less land occupation and stronger stereoscopic sense. With the design of inner climbing ladder, it is more convenient and safer when entering engine room. In addition, installing worktable and guardrail in generator cabin, make the maintenance more convenient. Add or delete control content based on customer requirements, it is possible to additional monitoring communications.

    components  quick description 50kw on-grid

  500KW generator wind

Controller advantage



    1. If the system meet probles and the wind turbine is running,the manual brake button will prvent the wind turbine race rotation

    2. Our generators have the auto-protection function of the battery over voltage protection,battery under voltage protection,battery,reverse-connect protection solar panel reverse-charge protection,solar panel reverse-connect protection

    3. The wind turbine brake automatically when the battery bank voltage get to rated voltage 125% and stop charging batteries.when the charge current is high insrong wind turbine automatically and charging the battery with low current,however,the wind turbine get back charging the bayyeries when the battery bank voltage  get to rated voltage 108%

    4. The big power controller which are from 15kw to 100kw matches the touch-type screen and it is humanization design to make the operation more convenient and intuitive and intuitive to show more directly

    5. Controller with a manual emerhency brake switch,users can use depending on the circumstances.Using this switch,the wind turbine will be brake..



 32 500KW generator wind

Inverter advantage

    1. It is the pure sine wave output can drive any household appliances and use integrated circuit,less wire connection

    2. we adopt the micro-processor technology ,improving system integration

    3. Elcellent protection includes over voltage shutdown,under voltage shutdown,over load protection,short circuit protection,over thermal protection,etc.

    4. Be able to work in wind power or wind&solar hybrid system

    5. With high effciency transformer instead of high frequency e-circuit design

    6. Automatic regulate voltage

    7. LCD display operation status

    8. High running stability and reliability

    9. True sine wave form power output

   10. High efficient transformer isolation

   11.Buzzer alarm while over-loading/voltage,high-temperature



27









All our wind turbine generators have passed ROHS, TUV, CE, ISO9001:2000 ect. Certifications



certification





contact information

Contact information of Hengfeng wind power generator manufacture





.jpg



Choose Hengfeng, choose the best wind generator of china!

Choose Gavin, choose the best service!
