50KW wind turbine electric generating windmills for sale

FOB Reference Price:Get Latest Price
US $56,000-93,000 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shandong, China (Mainland)
Brand Name:
Hengfeng
Model Number:
HF15.0-50KW
Type:
Wind Power Generator
Product Name:
50KW wind turbine electric generating windmills for sale
Output voltage:
380V
Work speed:
3-30(m/s)
Number of blades:
3PCS
Blade Material:
FRP
Diameter of blades:
15M
Color:
Customer's Requirements
Rated power:
50KW
Certificate:
CE/SGS/ISO9001:2008
Rated wind speed:
10m/s
SupplyAbility
SupplyAbility:
200 Set/Sets per Month
Packaging & Delivery
Packaging Details
Plywood Case
Port
QingDao
Lead Time :
20 Days after received deposit

50KW wind turbine electric generating windmills for sale

Product Description

15kw-50kw

1. 50KW wind turbine basic parameters

Power

50kw

Blades diameter

15m

Rated rotor speed

100r/m

Rated speed

10m/s

Rated power

50kw

Max power

60kw

Output voltage

380v

Start up wind speed

3m/s

Work speed

3-30m/s

Security wind speed

50m/s

Height of tower

18m

Top weight except tower

2000kg

Tower type

450mm steel tube

Output controller system

Controller,Inverter

Suggested batteries and its capacity

12v 200AH 112 PCS

Can supply for

Village, Refrigerator, Washing Machine, Water Pump, TV, Electric fan, charge

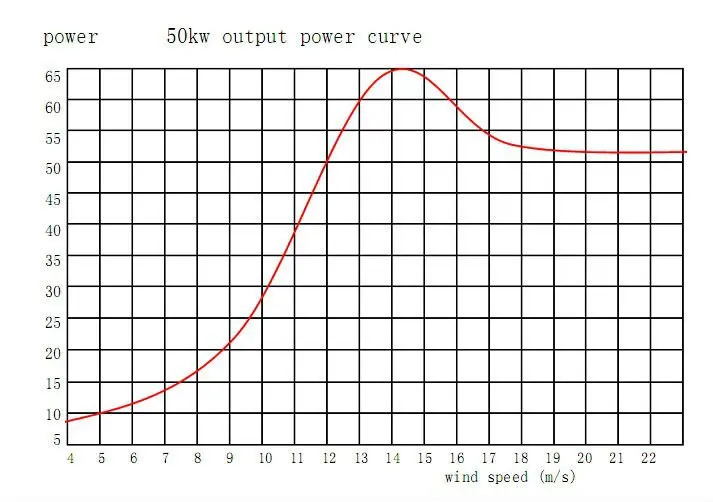

350kw OUTPUT POWER CURVE



2. 50kw wind turbine advantage

1. Generator: Motor punching film is used 470 silicon steel, the generator winding is resistant to 240 degrees high temperature copper wire, high insulation performance, high magnetic permeability, high power generation, behind with a speed motor.

2. Leaves: The use of glass fiber reinforced plastic, one-way fiber cloth, the use of epoxy resin hand mold production, flange connection, easy to connect, do not have to correct the installation, good balance.

3. Controller with PLC programmable logic controller control, man-machine interface, using a 256-color touch screen, the operation display more intuitive and convenient, rectifier parts with temperature detection function, the controller power supply acceptable input voltage range of 24- 600V, so as to ensure that under any circumstances, the controller and yacht motor to normal operation, the signal sensor is shielded cable connection, the signal transmission is not disturbed, more reliable, the internal detection of voltage and current sensors, High-precision sensor, the controller in accordance with the wind speed, wind direction, current, voltage and other aspects of the integrated control of the motor yaw, yaw minimum angle of 1 degree (Note: unlike other manufacturers yaw minimum angle of 30 degrees) So that we can more effectively use the wind to get the maximum output power.

Picture show

50kw

Company Information

_01work shop_11

Qingdao Hengfeng Wind Power Generator Co.,Ltd is one of the leading wind turbine manufacturer in china. Company start at 2004,Workshop covers more than 5000 square meters.

Our company owns advanced design and manufacture technology of small wind turbine generators. Every type has self-governed power supply system. It can work in safe at any kind of bad weather, and does not need any special care. It is the perfect power supply system for living separately, observatory, sentry, isolation island and farm. We also have products such as solar and wind hybrid generator,which combine the wind energy and the solar energy,not only make full use of natural resources,but also make our environment more beautiful.

If you are thinking about reducing your domestic energy bills or providing a multi-site energy solution for your business,HENGFENG can help achieve your renewable energy aspirations. We make sure that your wind turbine choice will work productively for you and deliver all-round environmental benefits.



Certifications

certification

Packaging & Shipping

packing and shiping

5

Our Services

1. Reply your inquiry in 24 working hours.

2. Customized design is available. UEM&UBM are welcomed.

3. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staff.

4. Professional factory: We are manufacturer, specializing in producing all kinds of machinery for more than 15 years, competitive with good quantity.

5. As an honest seller, we always use superior raw material, advanced machines, skilled technicians to ensure our products to be finished in high quality and stable future.

FAQ

2

1.Are you manufacturers or just sellers?

We are a company that develops and produces sales and services.

2.Does installation Easy ?

Yes, you can do it by yourselves, we will supply all the components for installation and very details installation manual.

3.Do you have any certificate of your products?

Yes, CE, ISO, SGS.

4.Do you have any certificate of your company?

Yes, ISO 9001
