wind generator 30kw windmill wind generator turbine energy generator

FOB Reference Price:Get Latest Price
US $26,600-44,700 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shandong, China (Mainland)
Brand Name:
Hengfeng
Model Number:
HF12.5-30kW
Type:
Wind Power Generator
Rated power:
30kw
Rated Voltage:
380V
Rated wind speed:
10m/s
Blade diameter:
12.5m
Rated rotor speed:
120r/m
Blades:
FRP blades ---3pcs
Start up wind speed:
3m/s
work speed:
3-25 m/s
color:
custom
Height of tower:
18m
SupplyAbility
SupplyAbility:
100 Set/Sets per Month
Packaging & Delivery
Packaging Details
We use plywood case and film to package compents.
Port
Qingdao Port
Lead Time :
30days after received the deposit

wind generator 30kw windmill wind generator turbine energy generator



Product Parameters



Power30kW
Blade diameter12.5m
Rated rotor speed120r/min
Rated speed10m/s
Rated power30kW
Max power35kW
Output voltage380v
Start up wind speed3m/s
Work speed3-25m/s
Security wind speed50m/s
Height of tower18m
Top quality except tower950kg
Tower typeGuy wire tower & Free standing tower
Output controller systemController & inverter
Output systemOff-grid system and on-grid system
Can supply power forSmall village, Referigerator, Washing Machine,Water Pump, TV ,Lighting, Electric Fan, Charge


Wind turbine
structure


Controller





Controller1> If the system meed problem, and the wind turbine is running,it can prevent the wind turbine race rotation.
2> Have the auto-protection function of the batteries Reverse protection, anti-disconnect battery protuction, battery damage protection.
3> When the charge current is high in strong wind, controller can load the wind turbine automatically. And charging the battey with low current.
4> The wind turbine brake automatically when the battery bank voltage get to rated voltage 125% and stop charging the batteries.
5> The wind turbine get back charging the batteries when the battery bank voltage get to rated voltage 108%.
6> Controller with a manual emergency brake switch, users can use depending on the circumstances, Using this swith ,the wind turbine will be brake.







Inverter



Inverter1> Pure sine wave output can drive any household appliances
2> Use integrated circuit, less wire connection
3> Adopting micro-processor technology, improving system integration
4> Excellent protection includes over voltage shutdown, under voltage shutdown, over load protection, short circuit protection, over thermal protection etc
5>Be able work in wind power or wind&solar hybrid system
6> With high efficiency transformer instead of high frequency e-circuit design
7> Automatic regular voltage
8> LCD display operation status

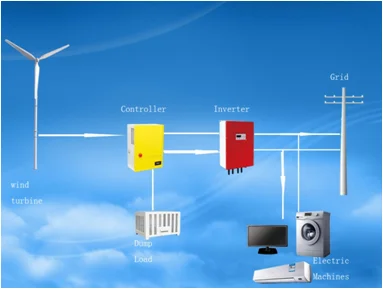

Output system—--Off-grid system





Output system—--On-grid system









Qingdao Hengfeng wind Power Generator Co., Ltd is one of the leading wind turbine manufacture with more than 10 years experience in China. We owned advanced design and manufacture

technology of the wind turbine. Due to our superior quality and comperative price, our client are more than 43 countries, like Europe, Middle East, Southeast Asia, Australia etc.







1. Tower with foam package only.

2. Controller and inverter are with inner carton box and outer plywood case.

3. Pakage size and weight please refer to our sales.

4. Shipping by sea with FCL LCL or by air.







FAQ

1.Can I only buy parts not whole system?
Yes,you can.
2. Are you manufacturer?
Yes,we are BV approved rubber products manufacturer in China.
3.Does installation easy?
We will provide you with detailed installation instructions.
4.Do you have any certificate of your products?
Yes, CE, ISO, SGS.
