100kw wind-power generator

FOB Reference Price:Get Latest Price
US $80,000-250,000 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shandong, China (Mainland)
Brand Name:
Hengfeng
Model Number:
HF22.0-100KW
Type:
Wind Power Generator
Product Name:
100kw wind-power generator
Color:
Customer's Requirements
Certificate:
CE/SGS/ISO9001:2008
Blade Material:
FRP
Number of Blades:
3 Pcs
Generator type:
3Phase Permanent Magnent Generator
Rated power:
100kw
Rated rotor speed:
60(r/m)
Height of tower:
22m
Rated Voltage:
380V
SupplyAbility
SupplyAbility:
100 Set/Sets per Month
Packaging & Delivery
Packaging Details
Plywood Case
Port
Qingdao Port
Lead Time :
45 Days after payment

100kw wind-power generator

Product Description

100kw wind turbine basic information



46

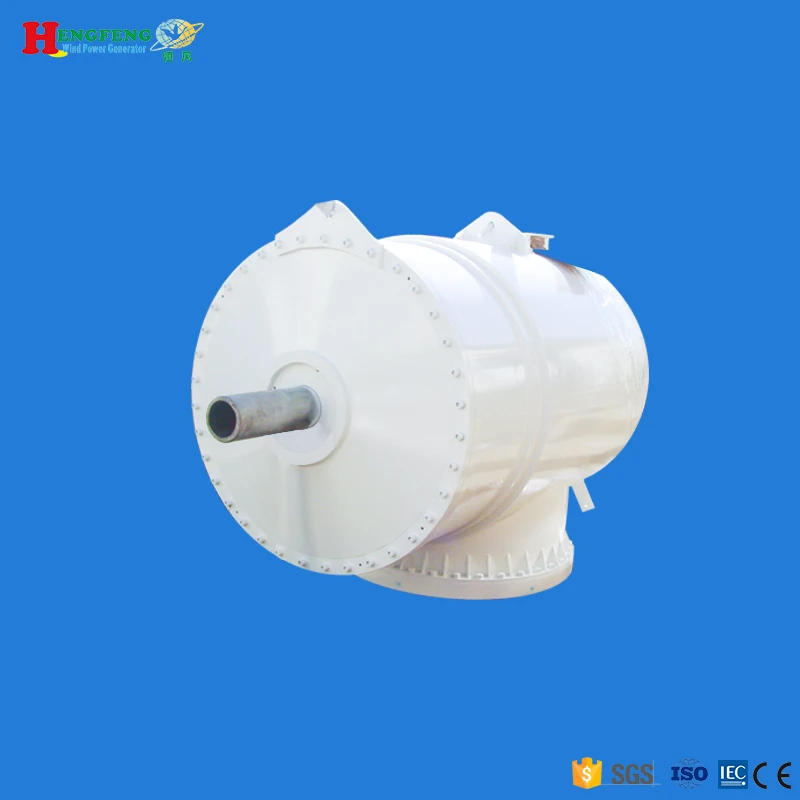

Generator

Blades diameter: 22(M)

Rated rotor speed: 60(r/m)

Rated speed:12(m/s)

Rated power:100KW

Max power:120KW

Output voltage:380V

Start up wind speed: 3(m/s)

Work speed:3-30(m/s)

Security wind speed:50(m/s)

Generator shell material:Pressure cast iron



49

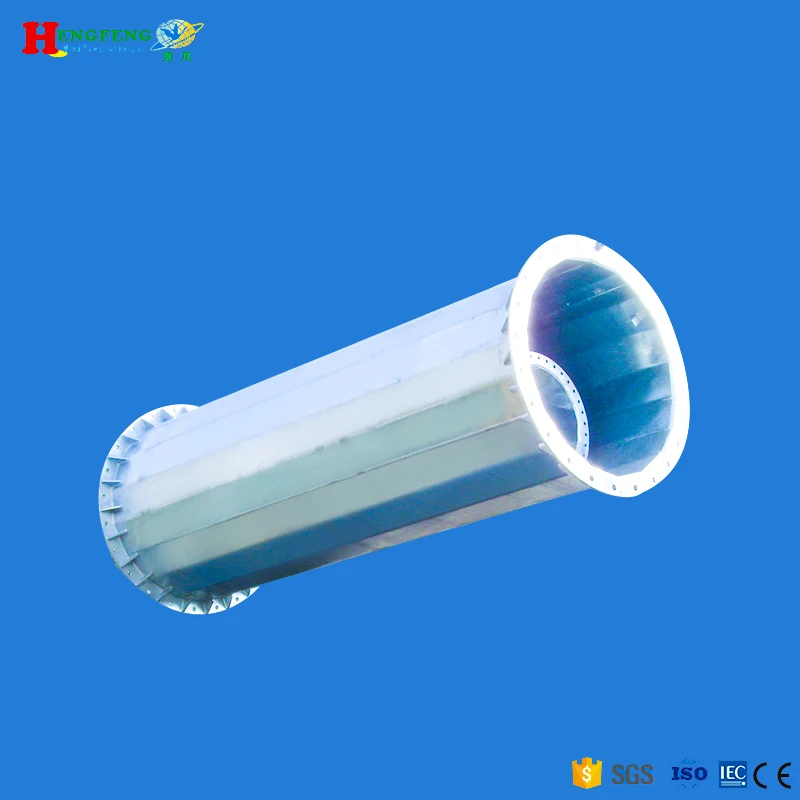

Free stand tower

Height of pole:23 m

Thickness:12 mm

Top flange diameter:800mm,Bottom flange diameter:1.7m

Sections of tower:4

Material: Q235 free stand tower

Surface treatment: painting against decaying

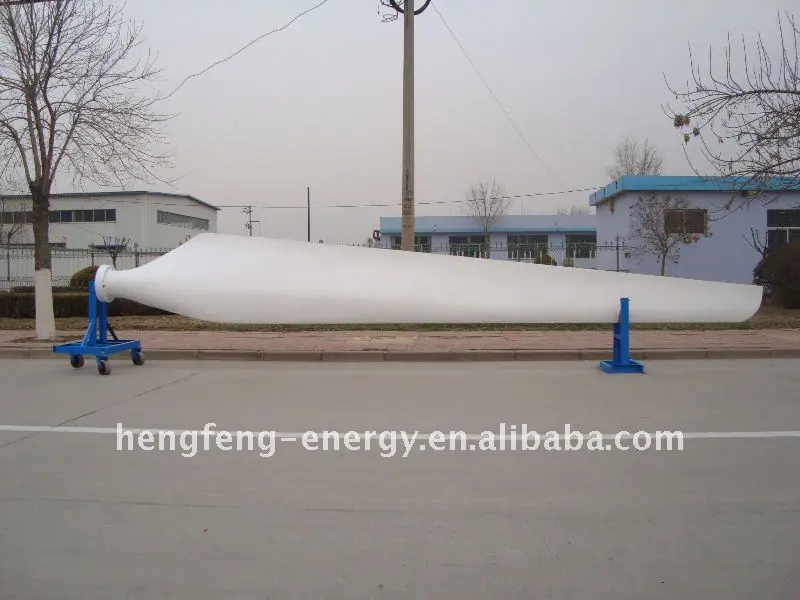

Blades

Material of blades:FRP Lay-up by hand

Number of blades:3PCS

Diameter of blades: 22M



 51

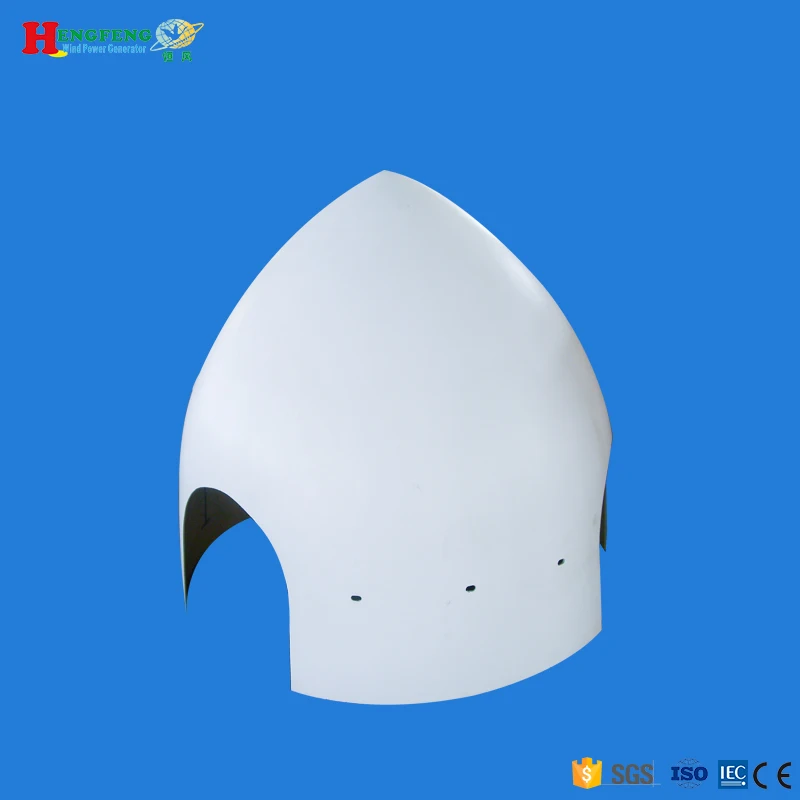

Dome

Material of dome:FRP Lay-up by hand

Number of dome:1PCS


 100kw wind turbine feature

1.Low start up speed, high wind energy utilization.

2.Easy installation, tube or flange connection optional.

3.Blades using new art of precision injection molding, matched with optimized aerodynamic shape and structure, which enhance the wind energy utilization and annual output.

4.Body of casting aluminum alloy, with 2 bearings swivel, making it survive stronger wind and run more safely.

5.Patented permanent magnet ac generator with special stator, effectively reduce torque, well match the wind wheel and generator, and ensure the performance of whole system.

6.Controller, inverter can be matched according to customers' specific needs.
