3kw permanent magnet motor wind generator

FOB Reference Price:Get Latest Price
US $2,800-5,600 / Sets | 2 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shandong, China (Mainland)
Brand Name:
Hengfeng
Model Number:
HF5.0-3KW
Type:
Wind Power Generator
Product Name:
3kw permanent magnet motor wind generator
Generator type:
Permanent Magnet
Rated rotor speed:
200r/m
Rated wind speed:
8m/s
Service life:
more than 20 years
Start up wind speed:
3m/s
Work speed:
3-25m/s
Max power:
4500W
Output voltage:
220V
Certificate:
ROHS, TUV, CE, ISO9001:2000
SupplyAbility
SupplyAbility:
850 Set/Sets per Month
Packaging & Delivery
Packaging Details
Plywooden Case,Foam.
Port
Qingdao Port
Lead Time :
within 10 days

3kw permanent magnet motor wind generator



Product description

HF5.0-3KW Description:



Model HF5.0-3KW
Power 3KW

Blades of diameter

 5.0m
Rated rotor speed 200r/m
Rated speed 8m/s
Rated power 3KW
Max power 4500W
Output voltage 220V
Start up wind speed 3m/s
Work speed 3-25m/s
Security wind speed 50m/s
Height of tower 8m
Top weight except tower 235KG
Tower type ∅133mm steel tube
Output controller system Controller, Inverter
Suggested batteries and its capacity 12V 100AH 18PCS
Can supply power for Air-condition,Referigetator,  Washing Machine, Water Pump, TV,  Lighting, Electric fan, Charge.ect

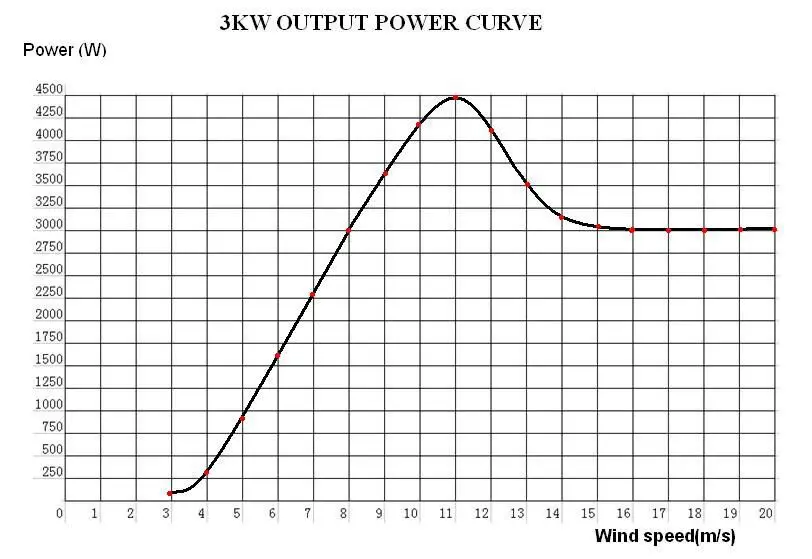

3





3kw_



Company Information



       Qingdao Hengfeng Wind Power Generator Co., Ltd is the leading wind turbine manufacturer in china. Our company is the vanguard in wind energy industry in North China. We design, manufacture, install and service wind turbine across the globe, with more than 20000 sets wind turbine in 43 countries.



      Our main products are from 150W-500KW, have passed ROHS, TUV, CE, ISO9001:2000, IEC61400-1 ect. certifications, and with the highest quality and best service, we have built up a very good global reputation. Our products are widely applied for island, military, maritime monitor, home use, commercial business and remote area ect.



      Choose Hengfeng, choose the best wind generator of china!







Hengfeng wind power generator COMPANY :

_01





Hengfeng wind power generator WORKSHOP:

work shop



Generator Advantage



      1. Generator: Press fitting before inserting coil and dipping paint for case and stator, protect the copper wire better and avoid the damage to the coil.

      2. Gyrator: Integrating with the trail canister and center deviation design for the gyrator, make alignment more flexible and effective. It guarantee the speed of generator and protect blade carbon brush and slip ring.

     3.Tail canister, tail board: Integrating trail canister with gyrator, reflects the integral linear of generator, and it is more coordinated. For tail canister is fixing, so take tail board protection technology, it need higher requirements for research and development, and all the technical parameters must be in place, more coordinated and more effective for the protection of excess wind speed.

    4. Blades are with high grade anticorrosion, weather-resistant glass steel coating and high density fiber cloth, the effect of anti-fatigue increase more than 50% than other kinds of blade. The blades are protected by the imported metal film coating, effectively prevent the dehiscence of the blades.

    5.The paint is double component car paint, has the advantage of long anti-aging, not easy to rust and fadeless ect.

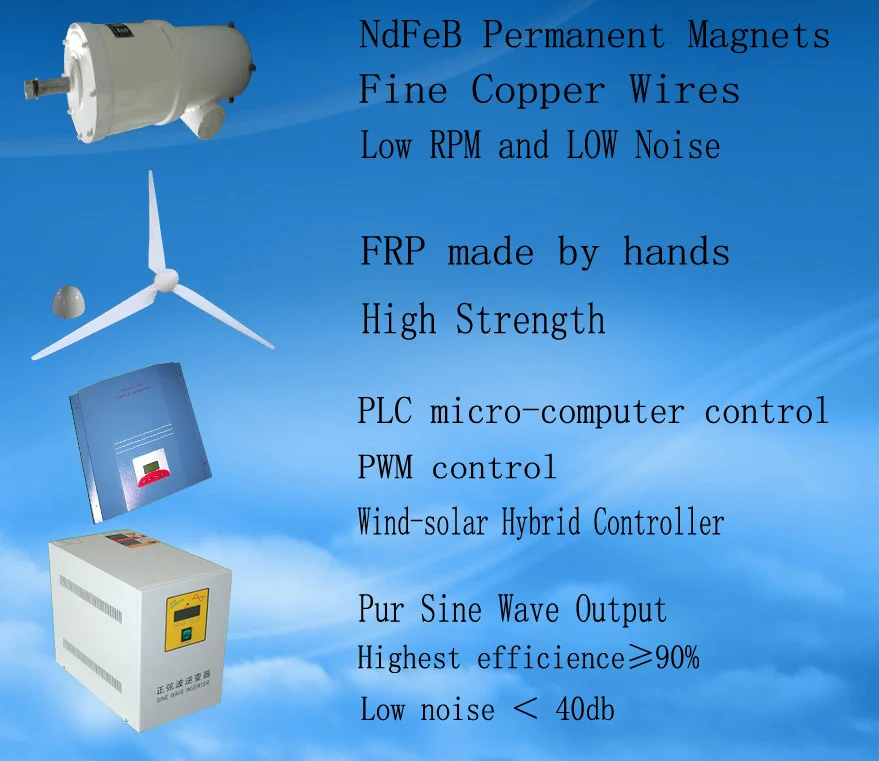

components quick description 3kw-5kw



3kw wind turbine generator

Controller advantage



    1. If the system meet probles and the wind turbine is running,the manual brake button will prvent the wind turbine race rotation

    2. Our generators have the auto-protection function of the battery over voltage protection,battery under voltage protection,battery,reverse-connect protection solar panel reverse-charge protection,solar panel reverse-connect protection

    3. The wind turbine brake automatically when the battery bank voltage get to rated voltage 125% and stop charging batteries.when the charge current is high insrong wind turbine automatically and charging the battery with low current,however,the wind turbine get back charging the bayyeries when the battery bank voltage  get to rated voltage 108%

    4. The big power controller which are from 15kw to 100kw matches the touch-type screen and it is humanization design to make the operation more convenient and intuitive and intuitive to show more directly

    5. Controller with a manual emerhency brake switch,users can use depending on the circumstances.Using this switch,the wind turbine will be brake..



 32

Inverter advantage
3000w chinese maglev wind turbine generator

      2. we adopt the micro-processor technology ,improving system integration

    3. Elcellent protection includes over voltage shutdown,under voltage shutdown,over load protection,short circuit protection,over thermal protection,etc.

    4. Be able to work in wind power or wind&solar hybrid system

    5. With high effciency transformer instead of high frequency e-circuit design

    6. Automatic regulate voltage

    7. LCD display operation status

    8. High running stability and reliability

    9. True sine wave form power output

   10. High efficient transformer isolation

   11.Buzzer alarm while over-loading/voltage,high-temperature



27



Packaging & Shipping

We have large quantity to export every month for our wind power generators. Here are some packing pictures as following:



Package

10_



Loading_





Our Services



Our Offer Range:



    1. 150W-500KW Horizontal Axis Wind Turbine generator (HAWT)

    2. Vertical Axis Wind Turbine generator (VAWT)

    3. FRP wind turbine blades

    4. Permanent Magnent Generator

    5. Solar panel

    6. Solar and wind hybrid system

    7. Controllers, invertor, battery and relation products



    We design diffirent system for customers according to your request. For

example, on-grid or off-grid system, solar wind hybrid system or solar wind

diesel generator system ect.



  Hengfeng wind power generator OFF-GRID system:Drawing of horizontal off-grid system



Hengfeng wind power generator ON-GRID system:

horizontal on-grid



Hengfeng wind power generator SOLAR WIND HYBRID system:

wind solar



All our wind turbine generators have passed ROHS, TUV, CE, ISO9001:2000 ect. Certifications



certification
