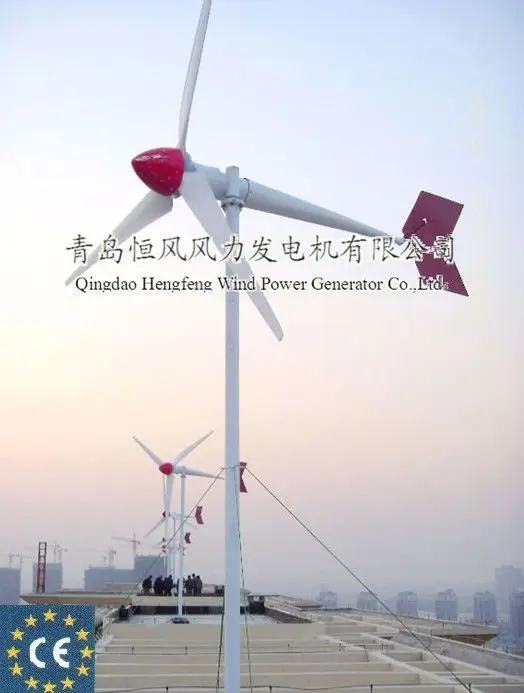

Free energy low rpm 5kw wind power generator

FOB Reference Price:Get Latest Price
US $2,000-9,000 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shandong, China (Mainland)
Brand Name:
Hengfeng
Model Number:
HF6.0-5000w
Type:
Wind Power Generator
Output voltage of inverter::
according to customers' request
Blades diameter::
6.0(M)
Rated rotor speed::
200(r/m)
Rated speed::
8(m/s)
Output voltage::
220v
Work speed::
3-30(m/s)
Supply Ability
Supply Ability:
1000 Set/Sets per Month
Packaging & Delivery
Packaging Details
plywood case
Port
Qingndao
Lead Time :
15days after deposit
Product Description

Solar & wind hybrid systems product mainly use for home, street lights system both of them are Economic, green and environmentally friendly .
At night or rainy day, wind turbine generate wind power. In sunny day, solar panel generate solar power. In windy and sunny day, both of them generate power.
wind turbine: 3pcs blades optional; guy cable tower or free stand tower can be choose.
solar panel: mono or poly panel optional; battery capacity and quantity can be choose.
Solar panel rack: flat/slope rooftop solar panel rack or ground mounting solar panel rack can be choose



Height of pole:
9 m
Tower diameter:
133(mm)
Blades diameter:
6.0(M)
Rated rotor speed:
200(r/m)
Rated speed:
8(m/s)
Work speed:
3-30(m/s)
Material of blades:
FRP Lay-up by hand
Number of blades:
3PCS
Material of dome:
FRP Lay-up by hand
Number of dome:
1PCS

Main Features

1. Low speed permanent magnet generator
2. Low starting torque, High generating efficiency
3. Glassfibre high efficiency blades
4. Neodymium magnets and bearing with high performance
5. Pre-yaw design for tail vane
6. Designed for minimal maintenance and easy installation
7. Aerodynamic brake & manul brake

On grid controller

On grid controller
Power:5000W
AC input voltage range:0-300V ac
Nominal AC input voltage:220V ac
DC output voltage range:100-400VDC

Size:390mm*290mm*190mm
Weight:<15Kgs


On grid Inverter

On grid Inverter
Permission AC Voltage Range(Nominal):220V±15%
Frequency:50Hz±5HZ
Consumption during operation:15 W
Maximum efficiency:>94%
Communication:RS485/RS323
Display:LED and LCD

We are the manufacture of wind turbine which runs for more than 10 years and our products have been exported to more than 40 countries !

All the product are designed or developed by our company, which have been confirmed by several quality testing organizations.

.

Certifications
Packing & Delivery
Our Service
Related Products

We sell:Wind turbine,wind generator,wind power generator,wind turbines,windmill generator,windmill,solar panel,solar and wind hybrid generator,energy,wind driven generator

Our product:Off-grid wind turbine from 150W to 100KW includes 150W,200W,300W,600W,1KW,2KW,3KW,5KW,10KW,15KW,20KW,30KW,50KW,100KW.
On-grid type from 2KW to 100KW

FAQ


1.Are you manufacturer?
Yes,we are BV approved rubber products manufacturer in China.

2.What’s your payment term?
Common is 50% deposit by T/T,the balance paid against shipping documents.

3.Are you near to Qingdao airport?
Yes,only within 1 hours.
And within 1 hour to Qingdao sea port.
50 minutes to Qingdao Railway Station.

4.Do you have any certificate of your products?
Yes, CE, ISO, SGS.

5.Do you have any certificate of your company?
Yes, ISO 9001

6.How's the after-sale service?
We offer engineers available to service overseas under merchandiser's supervision and translation.
