Cheap price 30kw hybrid solar wind power generation system

FOB Reference Price:Get Latest Price
US $25,000-28,000 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shandong, China (Mainland)
Brand Name:
Hengfeng
Model Number:
HF-30KW
Type:
Wind Power Generator
Output voltage:
220v/380v
Blade number:
3 pcs
Speed regulation:
leaning tail + electric brake
Type of tower:
guy wire or free standing
power:
30kw
Max power:
35kw
Life-span:
20-25 Years
Output voltage of inverter:
according to customers' request
certificate:
CE credentials/ISO9001/BV
SupplyAbility
SupplyAbility:
1000 Set/Sets per Month OEM
Packaging & Delivery
Packaging Details
PLYWOOD CASE
Port
Qingdao
Lead Time :
7days



1281161898222_hz-myalibaba-temp13_1551



we are manufacturer of wind power generator.

1. Machine Type:  horizontal-axis wind turbine

2. Blade form:  propeller

3. Blade number:  3 pcs

4. Blade material:  glass fibre reinforced plastic

5. Type of generator:  permanent-magnet 3 phase AC

6. Type of tower:  guy wire or free standing



Power:  30KW



Blade diameter (m):  12.5



Rated Rotated speed(r/min):  120



Rated speed (m/s):  12



Rated power:  30KW



Max power:  35KW



Output voltage (v):  380



Start up wind speed (m/s):  3



Work speed (m/s):  3-30



Security wind speed(m/s):50



High of tower (m):  18



Top quality except tower:  950kg



Tower Steel tube model (mm):  φ400



Speed regulation:  leaning tail + electric brake



Capacity and quantity of battery:  12V200AH 60 pcs



Can supply power for:

Small villages, Air conditioners, Refrigerators, Water pumps,

Cookers, Color television sets, Washing machines, Lighting,

Electric fans and Charge



Detailed Product Description

Machine Type: horizontal-axis Direct drive wind turbine

1. Blade Form: propeller

2. Blade number: 3 pcs

3. Blade material: glass fiber reinforced plastic

4. Type of generator: permanent-magnet generator

5. Type of tower: guy wire or free standing

6. Output Waveform of inverter: Pure Sine Wave

The Features of our wind generator as follow:

1.Low speed permanent magnet generator

2.Low starting torque,High generating efficiency

3.Glassfibre high efficiency blades

4.Neodymium magnets and bearing with high performance

5.Yaw motor system

6.Designed for minimal maintenance and easy install

7.Aerodynamic brake & manul brake

 30kw (4)



High-performance controller :

1.If the system meet problems ,and the wind turbine is running ,the manual brake button will  prevent the wind turbine race rotation.

2.Our generators have the auto-protection function of  the battery over voltage protection,battery under voltage protection,battery reverse-connect protection,solar panel reverse-charge protection ,solar panel reverse-connect protection.

3.The wind turbine brake automatically when the battery bank voltage get to rated voltage 125%  and stop charging batteries.when the charge current is high in strong wind,controller can load the wind turbine automatically and charging the battery with low current,however,the wind turbine get back charging the batteries when the battery bank voltage get to rated voltage 108%.

4.The big power controller which are from 15KW to 100KW matches the touch-type screen and it is humanization design to make the operation more convenient and intuitive to show more directly.

 32

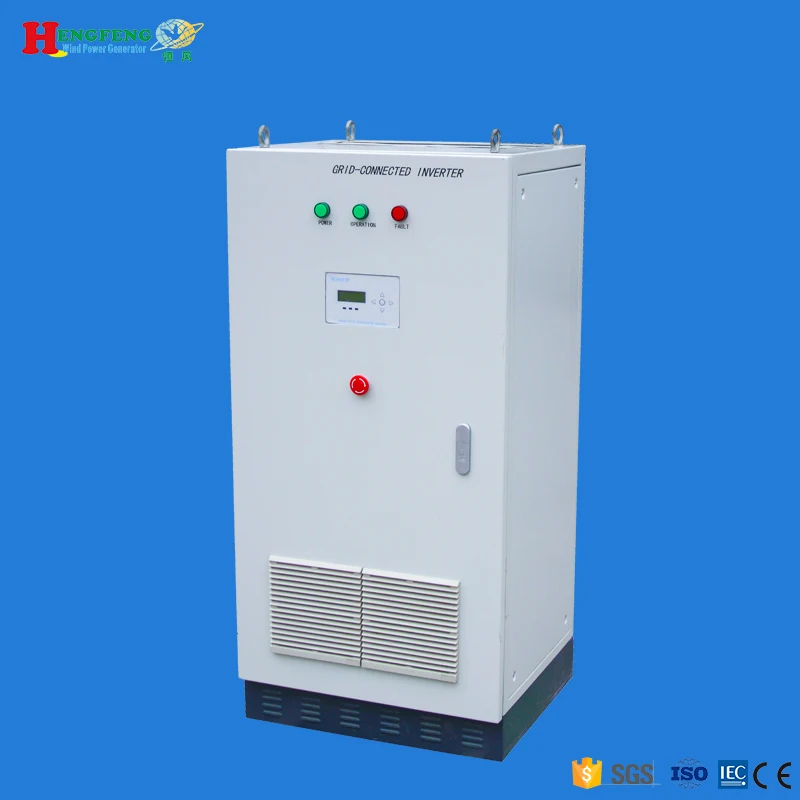

Pure sine wave inverter :

1. It is the pure sine wave output can drive any household appliances and use integrated circuit, less wire connection.

2. We adopt the micro-processor technology, improving system integration.

3. Excellent protection includes over voltage shutdown, under voltage shutdown, over load  protection, short circuit protection, over thermal protection with high efficiency transformer instead of high frequency e-circuit design.

4. Be able to work in wind power or wind&solar hybrid system

5. Automatic regulate voltage,

6. LCD display operation status,

7. High running stability and reliability

8. True sine wave form power output

9. High efficient transformer isolation and  buzzer alarm while over-loading,over-voltage, high-temperature.

 12



Product advantage :

1. Generator:  Our generator with cooling function. It can not burn out when the wind is too strong. We use the high grade NdFeB permanent magnet for generator.Every pcs magnet will be tested the  magnetic flux by the instiauthority tution.

The low starting torqure is designed by our mechanical engineer but also assure the high generating effciency by improving the inner structure.With scientific design and practised experience,the machine has stable and high efficiency.

3. The wire package in the generator is made of copper wire which can resist 160 centigrade heat. High insulated performance, high magnetic permeability, High generating efficiency.

4. The magnetic sheet is Neodymium iron boron not ferrite. Neodymium iron with long life time than ferrite and not easy to demagnetize. The stator is made of 470 silicon steel sheet. Not iron sheet.

5.Blades: Streamline shape three PCS FRP blades, Unidirectional fibre fabric, by use of epoxy resin mold made by hand. Not hollow it is inner foam. Low Noise. No need to adjust and good quality of balance. No shaking. High strength, fatigue resistance.

6.Controller is solar and wind hybrid, have manul brake button. 200% immediate protection function.Inverters are ture sine wave, not square wave or Vehicle-bone inverter.

7. The material of tower is steel tube, PET paint, anti-decaying, antiseptic, rust-proof.

8. We can supply free stand tower and guy wire tower,and the height can be changed according to your requirement.We also can produce the tower with climb ladder ,that is convenient for installation.



According to customer requirements

Solar panel

32

FAQ

1.What's the delivery time ?

10 working days after your deposite



2.What's the warranty and service?

Warranty period: one yea



3.How long are we specialized in wind turbine industry?

From 2006 till now. Expert enterprise and a well-known professional manufacturer



4.What's the unique feature about Hummer?

small, light, high efficiency, low noise with SCF generator technology

smart control system with touch screen

high wind protection

All above features with 7 patents, ranging from 150w to 500kw medium and small-sized wind turbines



5.Quality?

Strict factory inspection, SCF generator and inverter certified by CE ,ISO9001, BV,Our products have export to more than 43 countries,for example,Europe,Middle East,Southeast Asia,Australia etc.

u=3473183000,1657957647&fm=21&gp=0





Other details

1.The span life of our products is 20~25 years even more.

2.We mainly export to European ,American markets, Middle East market, such as Germany, France, Poland, Rusia , Italy, USA, England and so on.

3.Production capacity: 1000 sets

4.Annual sales: usd 4,900,000
