wind power turbine generator system 10kw farm use high efficiency

FOB Reference Price:Get Latest Price
US $1,000-10,000 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shandong, China (Mainland)
Brand Name:
Hengfeng
Model Number:
HF8.0-10KW
Type:
Wind Power Generator
Product name:
Wind power turbine generator system 10kw farm use high efficiency
Blade Material:
FRP
Number of Blades:
3 Pcs
Application:
Farm
Generator type:
3 Phase AC Permanent-magnet
Color:
Customers' Requirement
Certificate:
CE/SGS/ISO9001:2008
Frequency:
50/60HZ
Life time:
20-25years
Tower:
Guy wire tower or Free stand tower
Supply Ability
Supply Ability:
200 Set/Sets per Month
Packaging & Delivery
Packaging Details
plywooden case
Port
Qingdao
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(day) 15 To be negotiated
Video Description

wind power turbine generator system 10kw small farm use high efficiency



Product Description

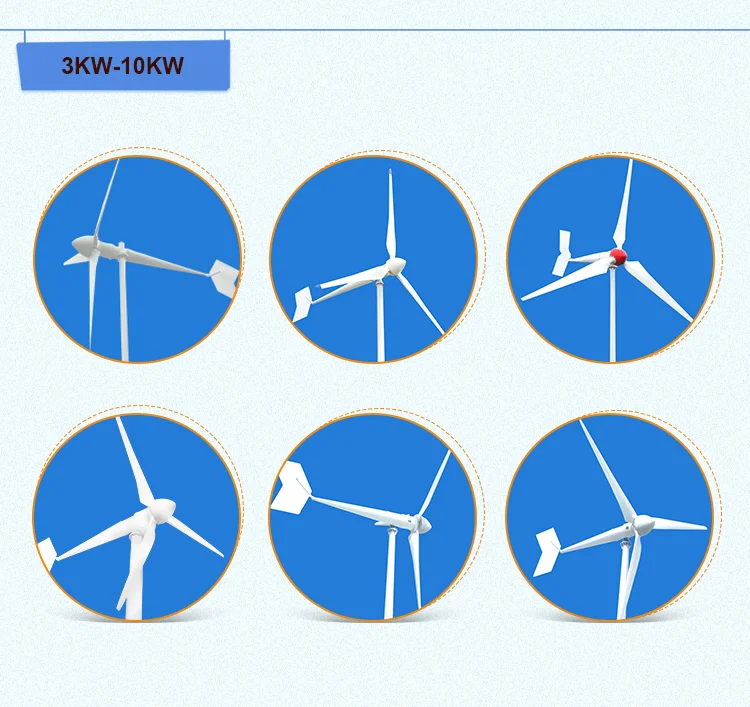

3kw-10kw

Export case diagram

3KW3-10kw wind turbine
Main technical parameter
1. Machine Type: horizontal-axis wind turbine
2. blade form: propeller
3. blade number: 3 pcs
4. balde material: glass fibre reinforced plastic
5. type of generator:permanent-magnet 3 phase AC
6. type of tower: guy wire or free standing

Power10kw
Blades diameter8m
Rated rotor speed200r/m
Rated speed8m/s
Max power20kw
Output voltage220v
Start up wind speed3m/s
Work speed3-25m/s
Security wind speed50m/s
Height of tower12m
Top weight except tower600kg
Output controller systemcontroller,inverter
Suggested batteries and its capacity12v,200AH,18PCS
Tower type∅273mm steel tube
Can spply power forsmall village,referigerator,washing machine, water pump, TV, lighting, electric fan, charge

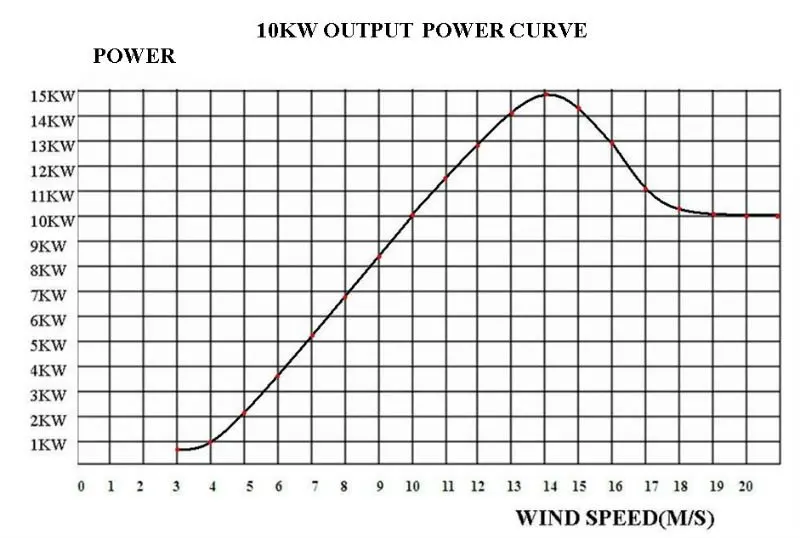

Wind turbine performance

10KW

Wind turbine feature

1.Low start up speed, high wind energy utilization.

2.Easy installation, tube or flange connection optional.

3.Blades using new art of precision injection molding , matched with optimized aerodynamic shape and structure,which enhance the wind energy utilization and annual output.

4.Body of casting aluminum alloy, with 2 bearings swivel , making it survive stronger wind and run more safely.

5.Patented permanent magnet ac generator with special stator,effectively reduce torque, well match the wind wheel and generator, and ensure the performance of whole system.

6.Controller, inverter can be matched according to customers’ specific needs.

Wind turbine system

On-grid system

horizontal on-grid

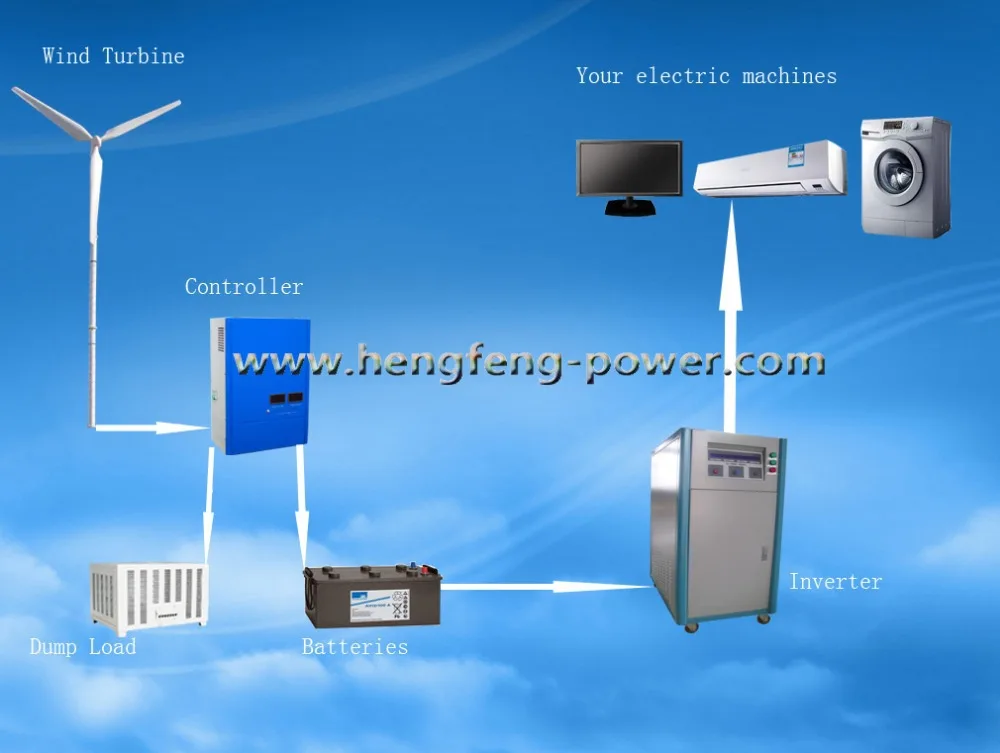

Off-grid system

Drawing of horizontal off-grid system

Wind and solar hybrid system

wind solar

Packaging & Shipping

package

We use plywood case and film to package component and we also can package for your requirements.

Company Information

1.Qingdao Hengfeng Wind Power Generator Co.,Ltd is one of the leading wind turbine manufacturer in China. Company start at 2004,Workshop covers more than 5000 square meters.It is about 1 hour by car to Qingdao Airport.The traffic is very convenient.

2. Our company owns advanced design and manufacture technology of wind turbine generators. We also have wind solar hybrid system, we can design the system according the requirement from our clients.

3.Our products have except to more than 60 contries,for example,Europe,Middle East,Southeast Asia,Australia etc.We have unrivalled experience and has built up a global reputation for their robust and reliable performance.

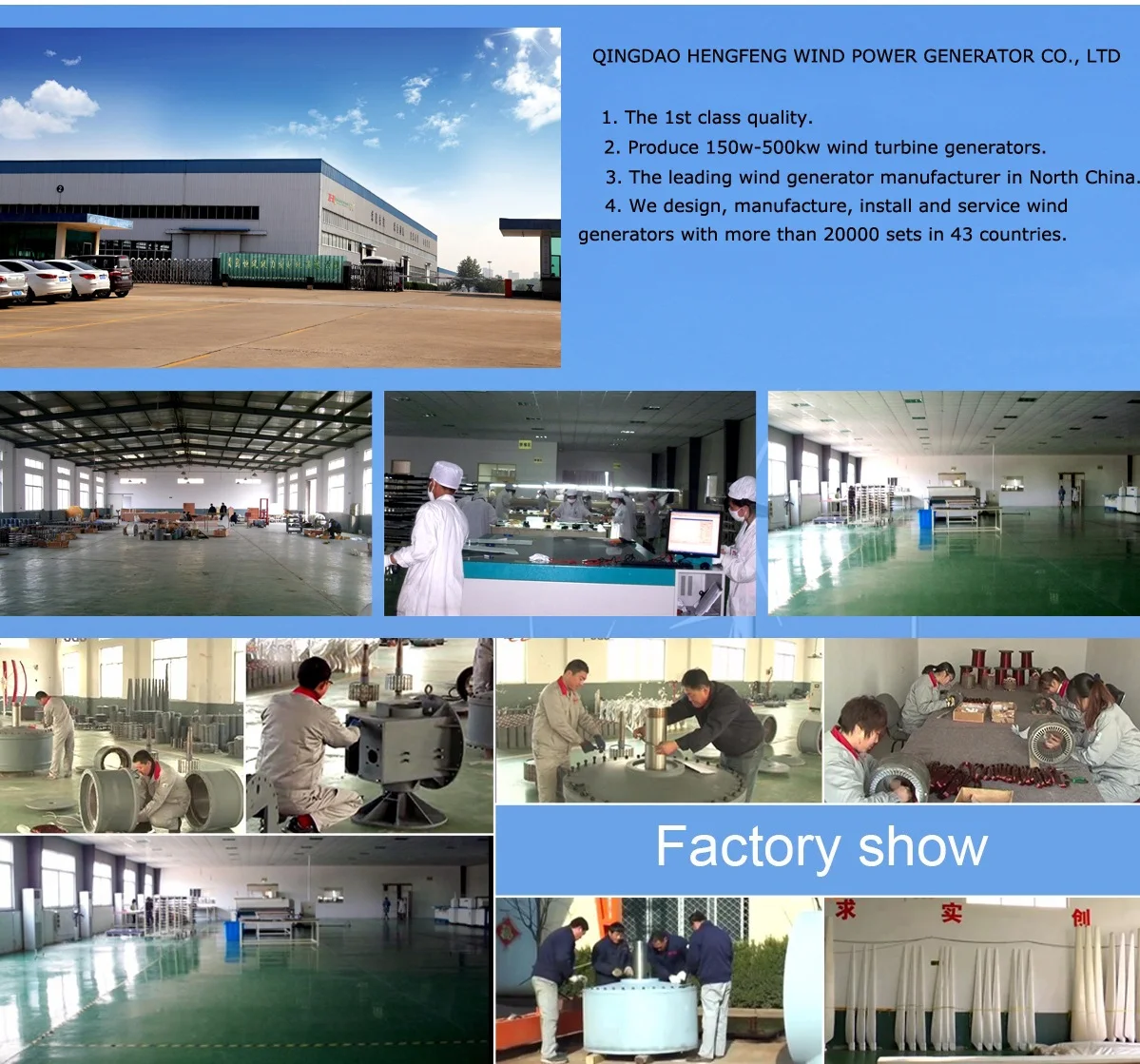

factory showcustomer visit

Certifications

certifications

Our Services

1.Reply your inquiry in 24  workig hours.

2.We can design and make procuts according to your requirements.

3.Our professional engineers can solve the problems in the process of use for you.

4.We use advanced technology and superior raw material to produce our products in order to ensure the quality of the products.

5.In the future,we will be good parnter

FAQ

1.Are you manufacturers or just sellers?

We are a company that develops and produces sales and services.

2.What’s your payment term?

T/T 50% as deposit, the balance must pay off within 10 working days after production.

3.Do you have any certificate of your products?

Yes, CE, ISO, SGS.

4.Do you have any certificate of your company?

Yes, ISO 9001

5.Does installation Easy ?

Yes, you can do it by yourselves, we will supply all the components for installation and very details installation manual.
