Low wind power generator type 15kw wind generator price

FOB Reference Price:Get Latest Price
US $16,000-20,300 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shandong, China (Mainland)
Brand Name:
hengfeng
Model Number:
HF9.0-15KW
Type:
wind turbine
Output voltage:
380V
Blade number:
3 pcs
Speed regulation:
leaning tail + electric brake
Type of tower:
guy wire or free standing
Certificate:
CE/ISO/SGS/BV
Windmill generator MOQ:
1 Set
products name:
generator /wind power for house/windkraftanlage15kw
Supply Ability
Supply Ability:
150 Set/Sets per Month
Packaging & Delivery
Packaging Details
plywood cases/pearl film inside
Port
Qingdao
Lead Time :
15 days after get the payment,sample order 5 days

Low wind  power generator type 15kw wind generator price



_01



Product Description

 we are manufacturer of windmil generator on-grid and off-grid system pure sine wave inverter.

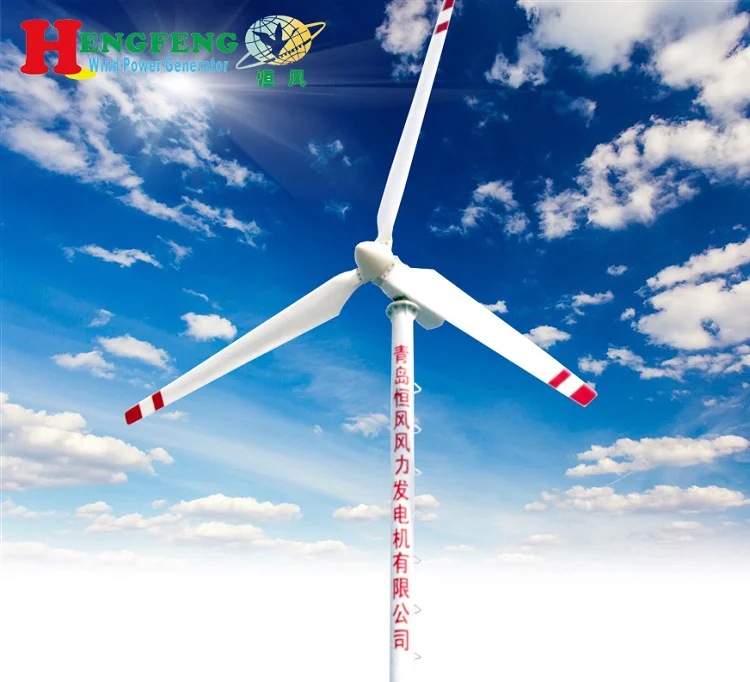

15kw wind turbine

1. Machine Type:  horizontal-axis wind turbine

2. Blade form:  propeller

3. Blade number:  3 pcs

4. Blade material:  glass fibre reinforced plastic

5. Type of generator:  permanent-magnet 3 phase AC

6. Type of tower:  guy wire or free standing

Power:  15KW

Blade diameter (m):  9.0

Rated Rotated speed(r/min):  200

Rated speed (m/s):  10

Rated power:  15KW

Max power: 20KW

Output voltage (v): 380V

Start up wind speed (m/s):  3

Work speed (m/s):  3-30

Security wind speed(m/s):50

High of tower (m):  16

Top quality except tower:  680kg

Tower Steel tube model (mm):  φ273

Speed regulation:  leaning tail + electric brake

Capacity and quantity of battery: 12V200AH 30 pcs

Can supply power for:

Small villages, Air conditioners, Refrigerators, Water pumps, Cookers, Color television sets, Washing machines, Lighting, Electric fans and Charge

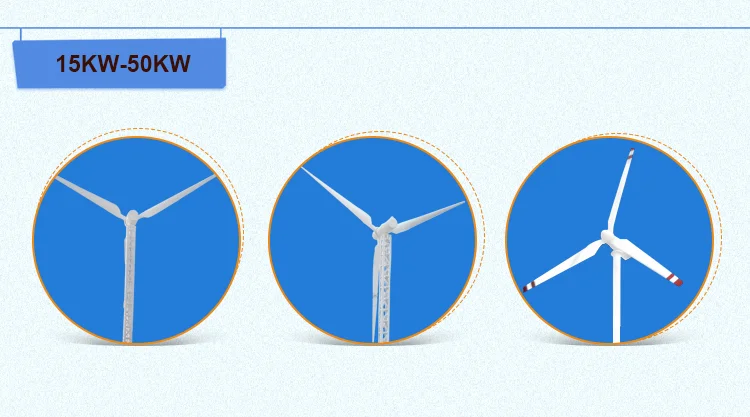

15kw-50kw

Technical parameters for reference

Power

15KW

Blade diameter

9.0m

Rated rotor speed

200r/min

Rated speed

10m/s

Rated Power

15KW

Max Power

20KW

Output voltage

380V

Start up wind speed

3(m/s)

Work speed

3-30(m/s)

Security wind speed

50(m/s)

Height of tower

16(m)

Top weight except tower

680kg

Tower type

ø273mm steel tube

Output controller system

Controller , Inverter

Suggested batteries and it’s capacity

32PCS 12V200AH

Can supply power for

VILLAGE,AIR-CONDITIONER,REFRIGERATOR,WASHING

MACHINE,WATER PUMP,ELECTRIC PAN, TV,LIGHTING,

ELECTRIC FAN,CHARGER  AND COMPUTER



Product advantage

  1. Generator: our generator with cooling function. It can not burn out when the wind is very strong.36
  2. The wire package in the generator is made of copper wire which can resist 160°C heat. High
  3.  insulated performance, high magnetic permeability, high generating efficiency. The magnetic  sheet is Neodymium iron boron not ferrite. Neodymium iron with longer life time than ferrite and not easy to demagnetize. The stator is made of 470 silicon steel sheet. Not iron sheet.
  4. Blades: streamline shape tree pcs FRP blades. Unidirectional fiber fabric, use of epoxy rein mold madeby hand. Not hollow it is inner foam. Low noise, no need to adjust and good quality of balance, no shaking Strength, fatigue resistance.10

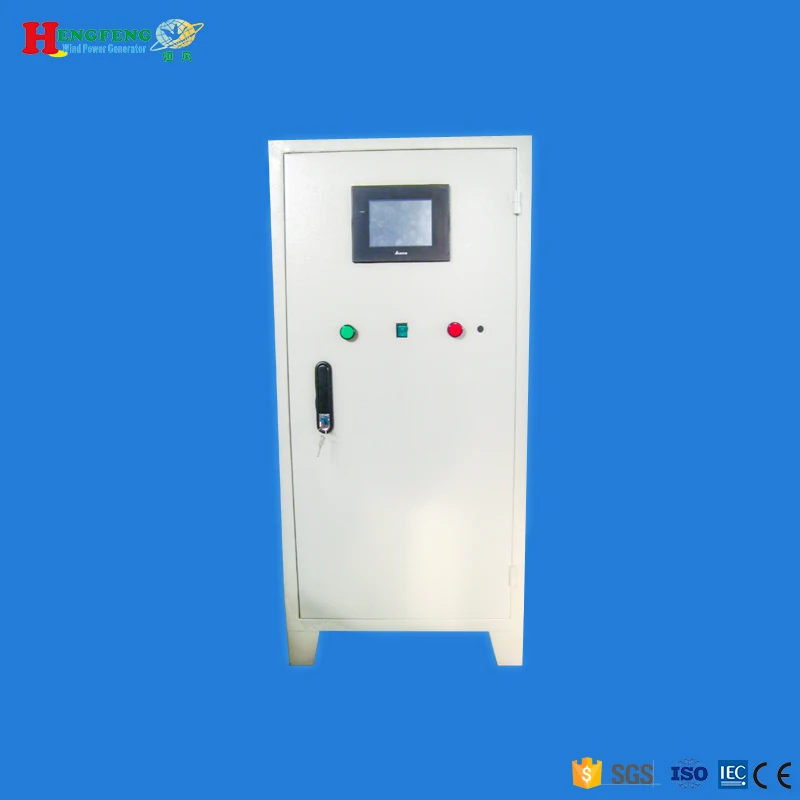

  5. Controller is solar and wind hybrid, have manual brake button. 200% immediate protection foundation.
  6. 29
  7. Inverters are pure sine wave, not square wave or vehicle-bone inverter.
  8. The material of tower is steel tube, PET paint, anti-decaying, antiseptic, rust-proof.    25

    We also have solar panel for supplement

2

Company Information


work shop_05target market_11

Our Services

 1. Reply your inquiry in 24 working hours.

2. Customized design is available. UEM&UBM are welcomed.

3. Exclusive and unique  solution can be provided to our customer  by our well-trained and professional engineers and staff.

4. Professional factory: We are manufacturer, specializing  in producing all kinds of machinery for more than 15 years, competitive with good quantity  .

5. As an honest seller, we always use superior raw material, advanced machines, skilled technicians to ensure our products to be finished in high quality and stable feature  .



Packaging & Shipping

_12 10_

FAQ

 1.Are you manufacturer?

Yes,we are BV approved rubber products manufacturer in China.



2.What’s your payment term?

Common is 50% deposit by T/T,the balance paid against shipping documents.



3.Are you near to Qingdao airport?

Yes,only within 1 hours.

And within 1 hour to Qingdao sea port.

50 minutes to Qingdao Railway Station.



4.Do you have any certificate of your products?

Yes, CE, ISO, SGS.



5.Do you have any certificate of your company?

Yes, ISO 9001



6.How's the after-sale service?

We offer engineers available to service overseas under merchandiser's supervision and translation.

Our offer range

------ 300W-200kw FRP wind turbine blades

------ Horizontal Axis Wind Turbine generator (HAWT)



------ Vertical Axis Wind Turbine generator (VAWT)

------ Solar and wind hybrid system

------ Solar panel

------ Permanent Magnent Generator

------ Controllers, invertor, battery and relation products

We can design diffirent system for customers according to your request. For

example, on-grid or off-grid system , solar wind hybrid system or  solar wind

 diesel generator  system .
